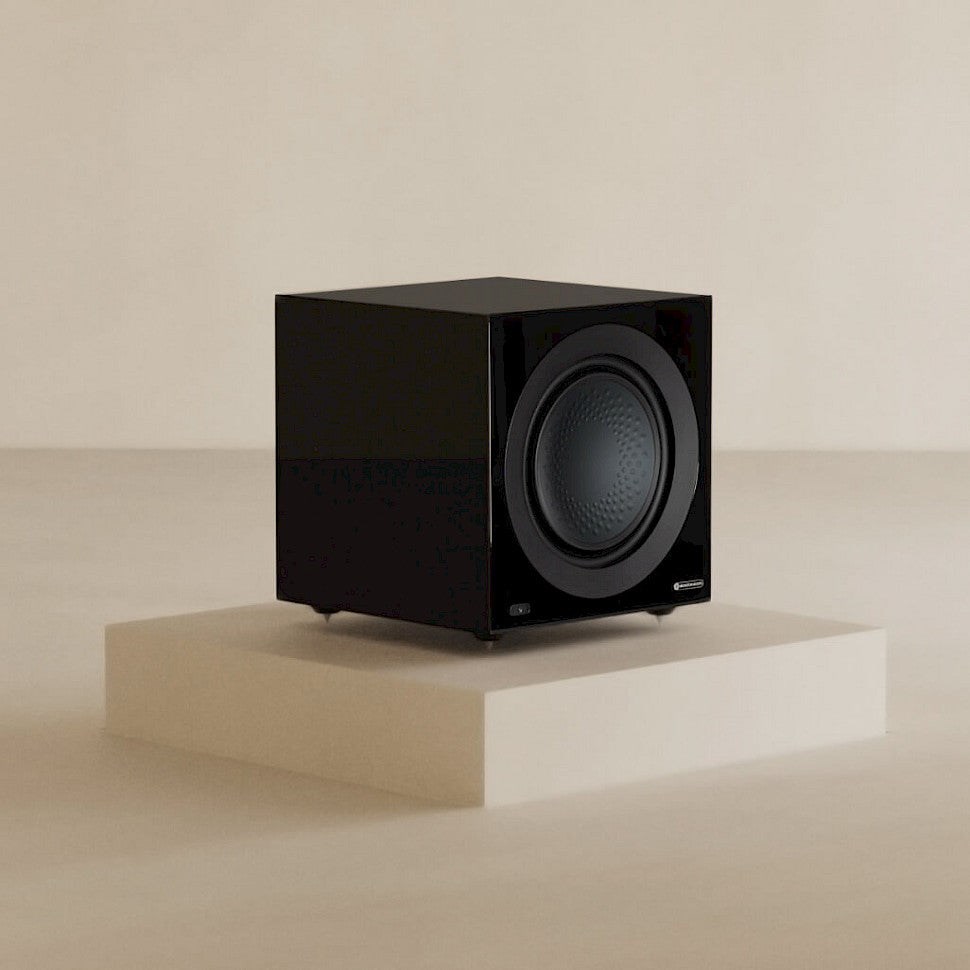

W12, Anthra subwoofer serisinin orta boy modelidir.
İçerisinde, kapsamlı bir şekilde içten desteklenmiş,
sızdırmaz kutuya sahip olan bir Class-D
1.000 Watt amplifikatör tarafından beslenen 12” (30 cm)
Rigid Surface Technology II (RST II) C-CAM yüksek hareketli sürücü bulunur.
System Format
Active - Sealed Cabinet
Drive Unit Complement
1x 12" (305 mm) High Linear-Excusion Triple Suspension Driver
Amplifier Classification
High-Efficiency Class-D
Lower Frequency Limit
-6dB @16Hz
Upper Frequency Limit
(LPF Off) -6dB @400Hz
Driver Excursion (pk-pk)
50 mm
DSP
28 Bit 50 MIPS Configuratable through MaestroUnite
Analogue Digital Conversion
Autoranging Input which combines a 10Vrms maximum
input with low signal to noise for small signals
Amplifier Output Power, 240Vac
Instantaneous: 1700 W*
Continuous short-term: 900 W**
Amplifier Output Power, 120Vac
Instantaneous: 1325 W
Continuous short-term: 700 W
LED UI Control
Brightness, On-Off
Phase Control
0-360 Degrees measured at LPF Crossover
Low Pass Filter
20-200Hz LPF with Roll off Adjustable from -3 to -48dB/Oct
Custom EQ
Configurable through MaestroUnite;3 pre-defined EQ
curves plus 3 custom EQ curves each with 8 band custom EQ
supporting (Peaking, High Shelf, Low Shelf, High Pass)
Volume Level
Wide adjustable input gain to allow maximum
output from a wide range of input signals

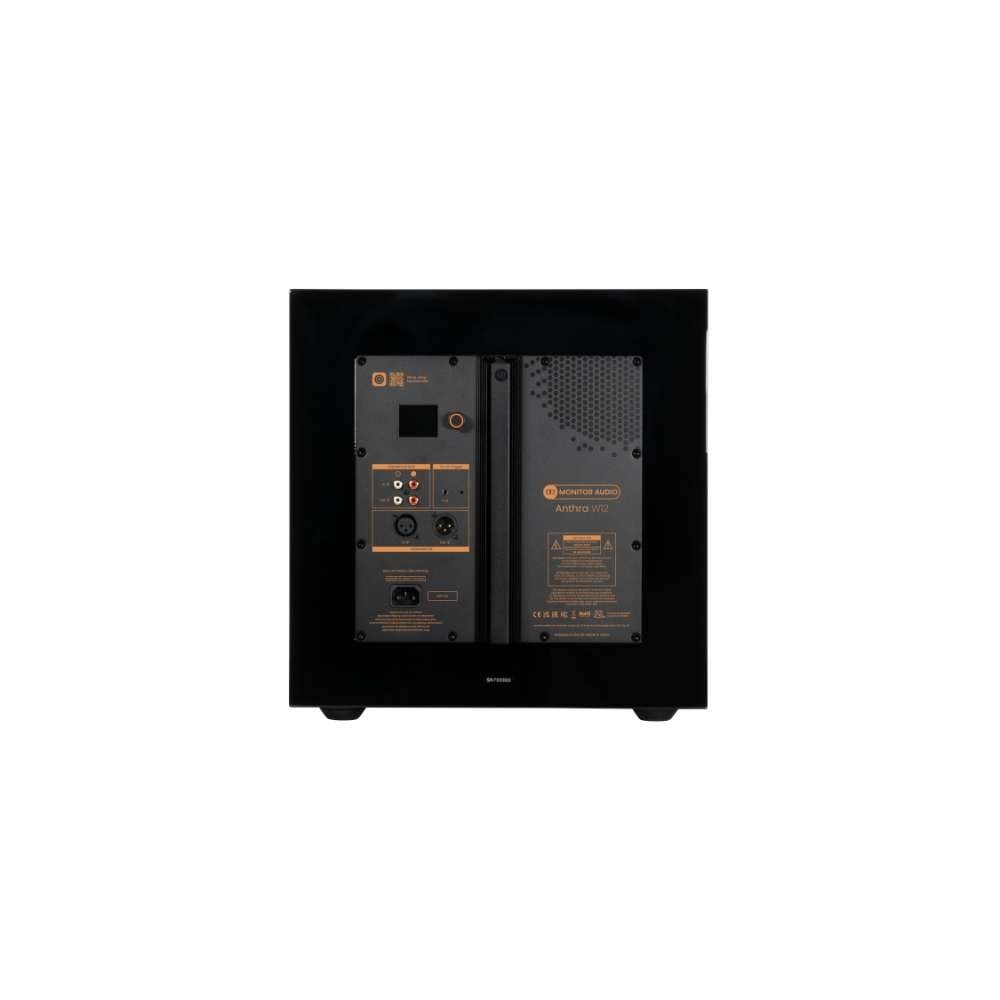

Inputs
Stereo Unbalanced RCA (or mono/LFE using only connector
marked LFE)Mono/LFE Balanced XLR
Outputs
Stereo unbalanced outputs with unbuffered throughput
from RCA Inputs Mono/LFE Balanced XLR outputs with
unbuffered throughput from XLR Input
Mains Input Voltage
Universal Mains, 85-265VAC
External Dimensions (without feet) (HxWxD)
374 x 374 x 374 mm
Cabinet Construction
Braced 25 mm thick MDF with 36mm front baffle

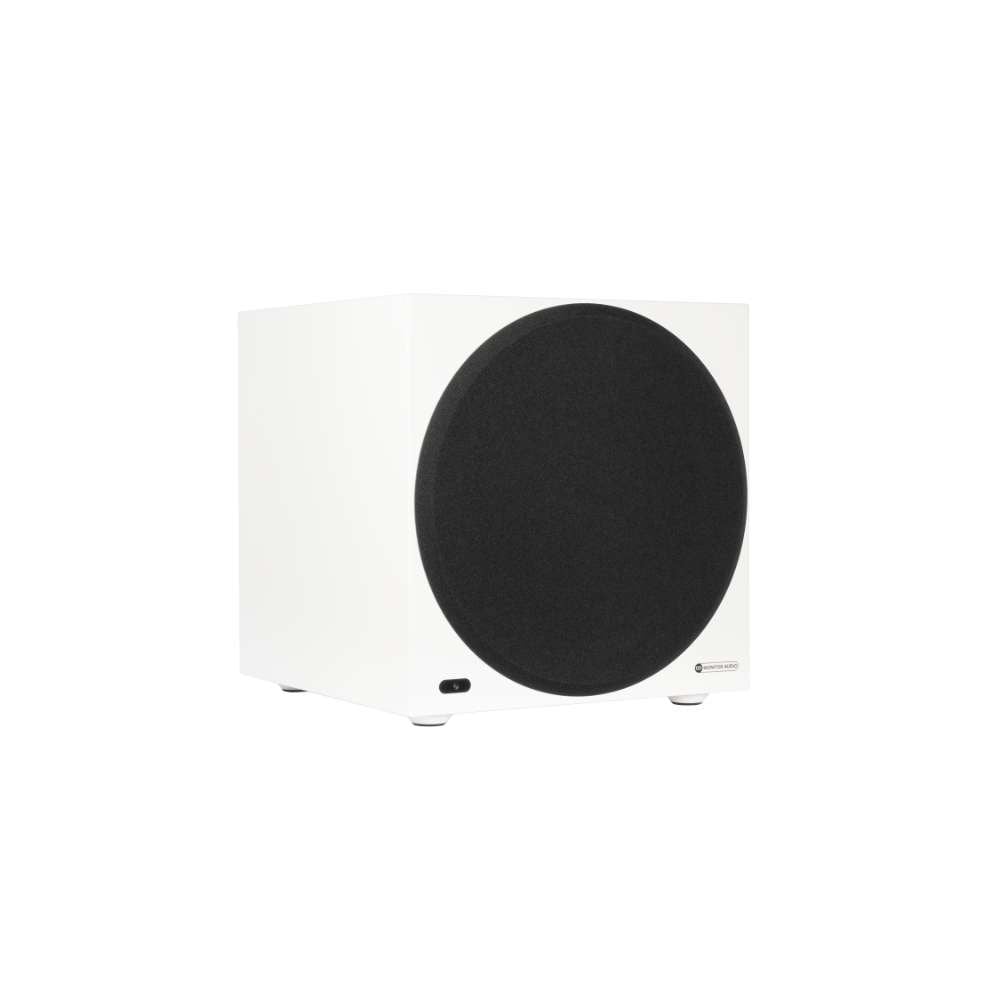

Grille
Cloth covered magnetically attached Grilles
Weight
28.56 kg (63 lb 1 oz)
* Maximum RMS output for an instantaneous signal
